24h Online Monitoring Protect Human Health Fixed Multiple/Single Gas Detector
Company Profile
Shenzhen Yuante Technology Co., Ltd. is a high-tech enterprise that integrates the research and development, manufacturing, and service of gas detectors and analyzers. Through independent research and development, cooperative development, and learning from the latest technologies of developed countries, the company has ensured its leading position in domestic products and technologies and synchronized development with its foreign counterparts. We welcome distribution agents, OEMs, ODMs. Yuante is willing to work with you to create a better future.
The SKY2000 series gas detector is a fast response and high-precision gas measurement equipment. Built in sampling pump, fast sampling speed, large flow rate, ensuring the response time of the detector. Unique design, small size, and easy to carry. Special high-strength engineering plastic casing, suitable for various occasions and environments. We are committed to providing you with the most reliable, accurate, and safe gas detection solutions
Product Overview

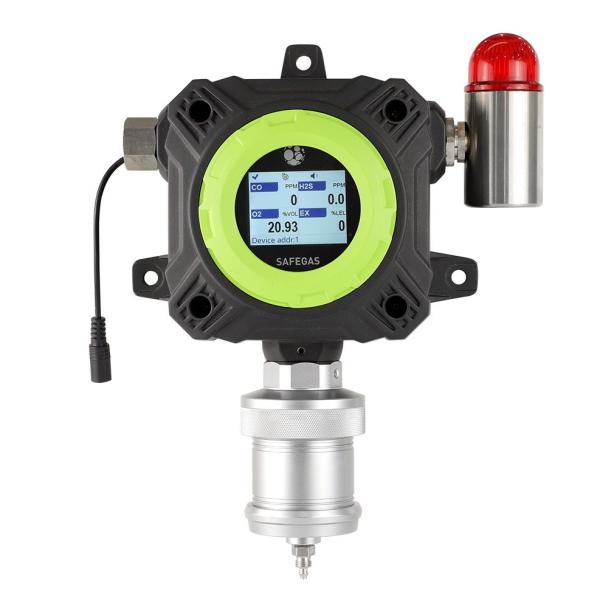

The YT-95H-B series is a built-in pump suction multi gas detector that can simultaneously detect 1-6 types of gases and continuously monitor various gas concentrations online for 24 hours. Output 4-20mA, RS485 standard signal, remote data transmission. The YT-95H-B series can detect gas concentrations in pipelines, enclosed spaces, and atmospheric environments, as well as detect gas leaks. The instrument has built-in constant flow and large suction pump, which can detect accurately and respond faster and more sensitively than the Diffusion model. When the target detection gas is lighter than air, it does not need to be installed at a height and can quickly and safely obtain detection results.
Product Functions
1. Optional with a large capacity 8G SD card storage function, the stored data can be saved for more than one year
2. Optional wireless transmission function, providing SMS reminder function, can upload data to EPA platform or other platforms, and the transmission signal is not limited by distance
3. Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output, optional 2 sets of relay signals
4. The infrared remote control function and button function are dual pronged
Specification
| Gas detected | Toxic, Flue, and gases in the air |
| Detection principle | Catalytic combustion, infrared, PID, electrochemistry |
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Measure range | Customized |
| Resolution | Customized |
| Precision | Customized |
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) |
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | 2.4 inch color display, resolution 320*240 |
| Wireless output (optional): | Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional) | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Language: | Chinese / English |
| Dimensions | (H x W x D) 320*210*110mm | Weight | ≤2kg |
Other normal gas types (Gases are not listed can be customized)
Hydrogen Chloride (HCL)
Chlorine(CL2)
Carbon monoxide(CO)
Ammonia(NH3)
Hydrogen sulfide(H2S)
Oxygen(O2)
Flammable gas(EX)
FAQS
1.What about the packaging?
- Aluminum luggage, cardboard boxes
2. What are the payment terms?
- Visa, Mastercard, electronic check, wire transfer, Western Union remittance, Alipay.
3. What certificates do you have?
- ATEX, IECEX, CE, ISO, CNEX explosion-proof, CMC, if you have any other certification requirements, we are also willing to help you.
4.Do you provide warranty for gas detectors?
- Yes, we offer a one-year warranty and lifetime paid service. As an experienced manufacturer, you can rest assured of quality and after-sales service.
5.Do you have a minimum order quantity limit?
- No, we don't accept it. One piece is fine
6.Can you give me a sample order?
- Yes, we welcome samples to test and inspect the quality
